Earth Station Antennas

Fixed GEO Earth Stations

Extensive Choices

Ground Antennas

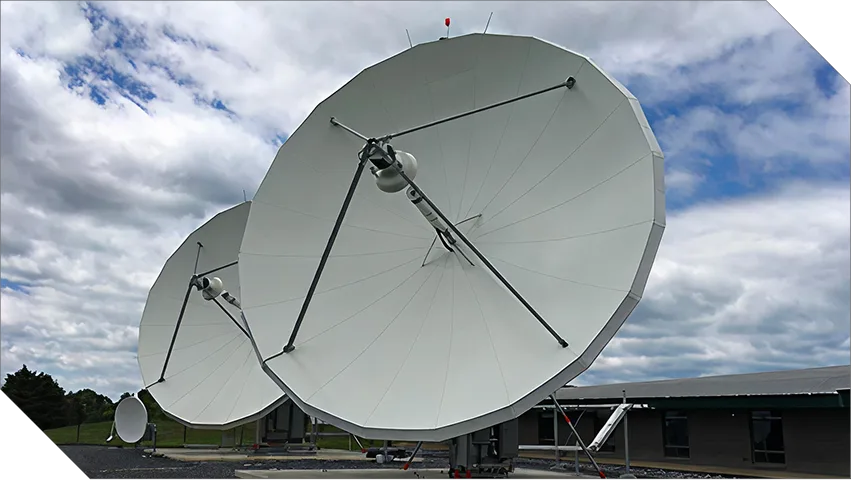

Kratos provides a broad range of fixed earth stations ranging from 3.5m to 18m and configured in receive-transmit or receive-only mode. These antennas offer outstanding electrical performance and exceptional versatility to support low PIM at certain Ku bands and all X-band systems.

Kratos’ antennas provide an extremely accurate surface contour resulting in exceptionally high gain and closely controlled pattern characteristics. High-quality manufacturing helps towards maximum durability with minimal maintenance.

G/T and EIRP Capabilities for a selected range of Kratos Earth Station Antennas

Small

Aperture Mount Bands of Operation Bulletin
3.5m Pedestal Ku-, Ka-, Q/V
3.7m Pedestal C-, X-, Ku-, K-
High Wind C-, X-, Ku-, K-
4.0m Pedestal C-, X-, Ku-
4.5m Pedestal L-, S-, C-, X-, Ku-
Kingpost Tripod L-, S-, C-, X-, Ku-
High Wind L-, S-, C-, X-, Ku-
4.9m Pedestal C-, X-, Ku-, K-, Ka-, Q\V
Extended Azimuth C-, X-, Ku-, K-, Ka-, Q\V-

Medium

Aperture Mount Bands of Operation Bulletin
5.6m Kingpost Tripod Ku-, K-
Pedestal Ku-, K-, Ka-, Q\V
6.5m Kingpost Tripod L-, S-, C-, X-, Ku-, K-
High Wind L-, S-, C-, X-, Ku-, K-
Extended Azimuth L-, S-, C-, X-, Ku-, K-
7.2m Pedestal L-, S-, C-, X-, Ku-, K-
7.6m Kingpost Tripod L-, S-, C-, X-, Ku-, K-
Pedestal L-, S-, C-, X-, Ku-, K-
Extended Azimuth L-, S-, C-, X-, Ku-, K-
8.1m Pedestal C-, X-, Ku-, K-
Turning Head C-, X-, Ku-, K-, Ka-
9.1m Pedestal C-, X-, Ku-, K-
9.3m Kingpost Tripod L-, S-, C-, X-
9.4m Pedestal C-, X-, Ku-, K-
Turning Head C-, X-, Ku-, K-, Ka-

Large

Aperture Mount Bands of Operation Bulletin
11.3m Pedestal C-, X-, Ku-
13.5m Turning Head C-, X-, Ku-
16.0m Turning Head L-, S-, C-, X-
18.3m Turning Head L-, S-, C-
